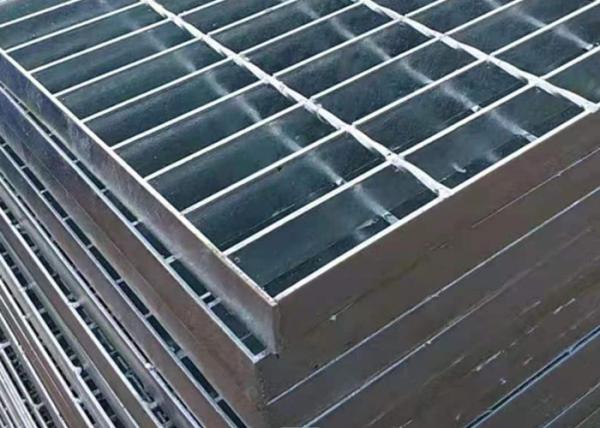

25 X 5 Size HDG Welded Plain Steel Bar Marine Driveway Grating
Plain Steel bar grating brief introductions:
Steel grating is made of flat steel in a certain spacing and cross bars (twisted square steel, square steel, round steel, flat steel, etc.), and is welded into a square with a square in the middle. A kind of steel product of lattice, steel grating is mainly used for gutter cover, steel structure platform board, steel ladder step board, etc. The crossbar is generally twisted square steel. Steel grating is generally made of carbon steel, and the surface is hot-dip galvanized, which can prevent oxidation. It can also be made of stainless steel. The steel grating has the properties of ventilation, lighting, heat dissipation, non-slip and explosion-proof.
Plain bar grating specifications:
| Bearing Bar | 25x2,25x3,25x4,25x4.5,25x5,30x3,30x4,30x4.5,30x5,32x5,40x5,50x5 mm etc |
| Usual Pitch | 41mm x100mm & 30mm x100mm |
| Special Pitch | 41mmx50mm, 30mmx 50mm, 33mmx 100mm, 33mmx50mm,33mmx38mm, 34mm x 100mm, 34mmx50mm,34mm x 38mm |
| Material Standard | Q235,ASTMA36,A1011,A569,S275JR,SS304&316 etc |
| Surface Treatment | galvanized,black,painted,spray coating,self color |
| Bearing Bar Type | serrated/teeth plain/smooth I bar Serrated I bar |
| HS code | 7308900000 |
| Sample | small pc for free |
Plain bar grating features:
Intensity, light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.
Plain steel bar grating usages:
Widely used in petroleum chemical industry, power plant, water and sewage treatment plants, municipal engineering, environmental sanitation engineering fields of the platform, footpath, zhanqiao pier, ditch lid, manhole cover, ladders, fences, guardrail etc.
Packing& loading:
