Galfan Zn-Al Coated Easy Installation 100x100x100mm Galvanized Gabion Box
Galvanized Gabion Box Description:
The stone cage net is the use of machine will metal wire one-way twist two weeks woven hexagonal net (hexagonal net) made of the cage, the production process is by weaving, shearing, locking, binding made of stone cage and pad, stone cage and pad to fold the state of supply.
Gabion is divided into three kinds of wire diameter - Mesh, side wire, tie wire
Surface treatment: galvanized (electroplating, hot plating) zinc aluminum alloy, PVC plastic
Uses: water conservancy construction, river regulation, landscape, protection
Side silk treatment: nest edge (common) hook edge
Service life of galvanized gabion box:
Galvanized gabion is divided into electro-galvanized gabion, hot dipped galvanized gabion, heavily galvanized gabion.
Electro-galvanized gabion, zinc coated weight is 10-20g/square meter, service life is 5 years.
Hot galvanized gabion ,zinc coated weight is 30-50g/square meter, service life is 5-8 years.
Heavily galvanized gabion, zinc coated weigh is 200-280g/square meter, service life is 20 years.
Galvanized Gabion Box Feature:
1.Economic.
2.Just fill the stone into the Gabions and seal it.
3.Simple installation.
4. No special technology needed.Weather proof under natural destroy, corrosion resistant.
5.No collapse even under big scope of deforming.
6.Sludge in the stones is good for plant growing.
7.Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.
8.Less transport freight. It can be folded together for transport and further installation.
Galvanized Gabion Box Specifications:
| Aperture | |
| Mesh Wire diameter(SWG) | |
| Selvedge wire(SWG) | |
| Lacing wire(SWG) | |
| Color | Darkgreen, gray ,black , etc. |
| Material | Galvanized wire ,galfan wire and PVC coated wire |
| Common size | 2m x 1m x 1m,
3m x 1m x 1m,
4m x 1m x 1m,
2m x 1m x 0.5m,
4m x 1m x 0.5m, |
| Weight | |

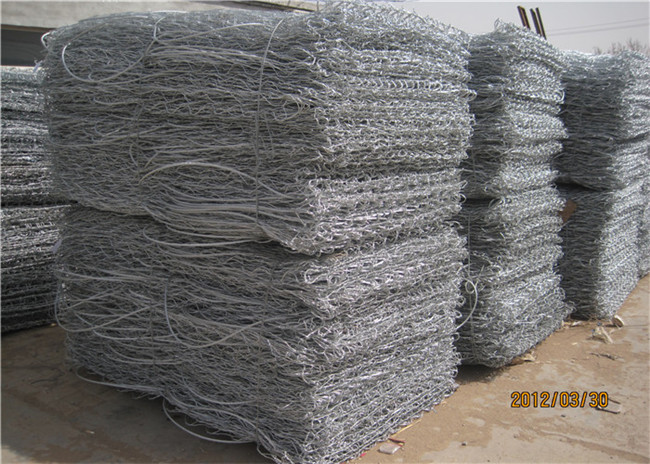

Packing of galvanized gabion box:
1. compacted before packaging.
2. Plastic packaging outside and on the pallet.
3. 20'container can contain more than 8,000 square meters.
40' container can contain more than 15,000 square meters
Loading pictures:

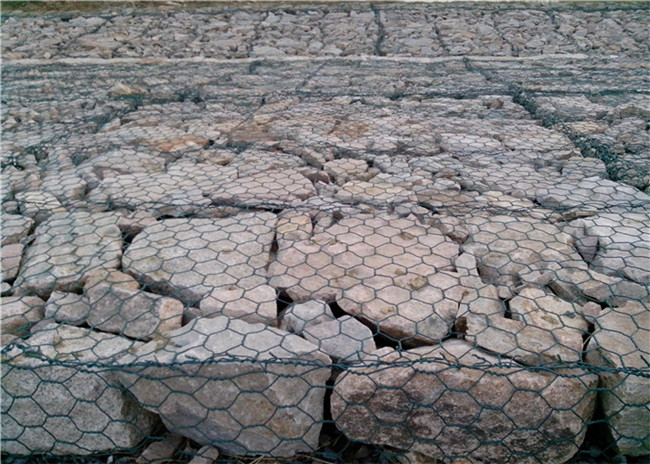

Applications:
• Control and guide of water or flood
• Flood bank or guiding bank
• Prevention of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering
• Isolation walls
• Protection of road
