Green White Color 2mm Steel Weld Mesh Panels Pvc Coated Pre Galvanized For Fence

Name: Green White Color 2mm Steel Weld Mesh Panels Pvc Coated Pre Galvanized For Fence
Brand: HBGB
Price: 1 USD

China Green White Color 2mm Steel Weld Mesh Panels Pvc Coated Pre Galvanized For Fence wholesale

Brand Name : HBGB

Model Number : GB-008

Certification : ISO 9001

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000pcs per day

Delivery Time : 10-20days

Packaging Details : in bundle, by pallet, wooden case or customized

Product name : PVC Coated Welded Wire Mesh

Raw material : pre-galvanized iron wire

Surface treatment : PVC coated, vinyl coated

Color : yellow, green, black, or etc

Diameter of wire : 2-10mm

Hole size : 1/2"-6''

Panel width : customized

Panel length : customized

Property : corrosion-resisting

Application : used as fence panel

Contact Now

Green White Color Pvc Coated Pre-Galvanized Welded Wire Mesh Panels For Fence Usage

Welded Wire Mesh Panels Introduction:

Welded wire mesh is one popular materials in concrete, construction and industry. It is made of low carbon steel wire, PVC coated wire and stainless steel wire, after welding or before welding and surface zinc treating .The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields.

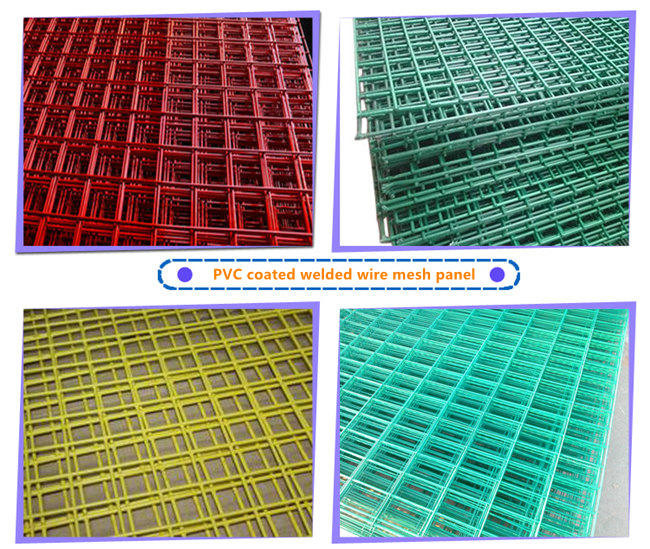

Color of PVC Coated welded wire mesh panels:

1) Dark green

2) Light green

3) Blue

4) Yellow

5) White

6) Black

7) Orange

8) Red

any customized color

Green White Color 2mm Steel Weld Mesh Panels Pvc Coated Pre Galvanized For Fence

Advantages of Welded Wire Mesh Panels:

* Smooth mesh surface and bright luster
* Well-proportioned meshes
* Strong welded points
* High solid structure
* Corrosion-resisting
* Oxidation-resisting

Size of Welded Wire Mesh Panels:

Available in a range of different sizes, gauges and apertures, our galvanised welded wire mesh panels can be used for a wide range of domestic projects and professional applications.

We provide a welded mesh "cut to size" service.

Welded Wire Mesh Specification:

Opening/ Length	Opening/ Width	Wire Diameter	Roll Size	Material
25-100mm	10-100mm	2mm	Width: 0.5-2.5m Length: 1-6.5m	1) Electro Galvanized Wire 2) Electro Galvanized after Welded 3) Hot dipped Galvanized Wire 4) Hot dipped Galvanized after Welded 5) PVC Coated 6) Stainless Steel Wire
25-100mm	10-100mm	2.5mm
25-100mm	10-100mm	3mm
25-100mm	10-100mm	3.5mm
25-200mm	10-200mm	4mm
50-200mm	10-200mm	5mm
50-200mm	20-200mm	6mm
50-200mm	20-300mm	7mm
100-500mm	30-300mm	8mm
100-500mm	30-300mm	9mm
100-500mm	30-300mm	10mm
4''x6''	101.6x152.4mm	BWG15-12
6''x6''	152.4x152.4mm	BWG15-12
6''x8''	152.4x203.2mm	BWG14-12

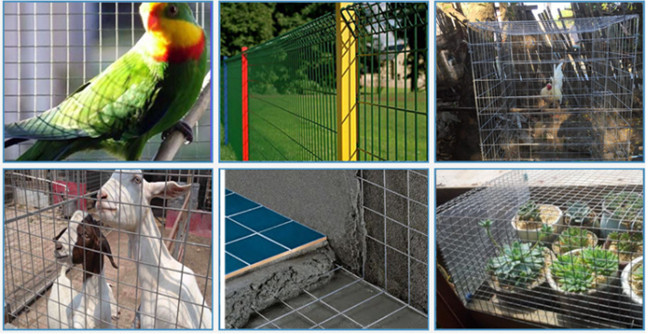

Application of welded wire mesh panel:

6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
